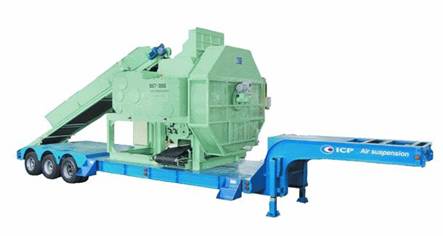

Tire Shredder line

Tire Shredder line

1. Cutting Chamber

Frame : 169.5mm mild steel, bolted construction

Main Bearing : #23248 spherical roller, 440mm OD

Shafts : SCM 440 pr-hardened, 250mm dia, 32mm wide double keyed

Rotors : SCM 440 mild steel, 550mm dia, doubled keyed and heat Shrunk to shaft

 The Main Rotor was patented 3-points support BRG of Main axis

Knives : Enhanced machine tool steel 60-62 HRC

Wear Plate : SKD11 steel 82-90 Hs

Opening : 1,239mm x 1,312mm

2. Feed Rollers

Drive : Chain driven from main shredder shafts

Shafts : Mild steel 112mm Dia. x 1,954mm Long

Feeders : 12 per shaft

Bearings : Plummer Block

3. Drive Assembly

Main Motor : 250 HP T.E.F.C

Motor Coupling : Motor Coupling

Gear Reducer : Main Reducer, Maximum 17:1 ratio

Two Speed : 22 RPM passenger, 12 RPM truck

4. Shredder Gear Box

Construction : 30-32mm tick steel, welded construction

Drive Gears : SCM 420 hardened and toughened by our exclusive tool Steel process. 81-85 Hs in accordance with AGMA quality Class 5-6 specification

Lubrication : All gears and an oil bath/oil splash(lubricated) for Maximum Lubrication.

Temperature and oil level sight gauge included

5. Input Conveyor System

Dimensions: 900mm wide by 8.5m long, telescoping

Drive Motor: 3 HP variable speeds

Construction: Flat rubber belt, roller bed type

6. Electrical Controls

Electrical Equipment suitable for operation with 440 volt, 60Hz, 3P(4P)

Control circuit is grounded (220 volts)

All wiring fused: NEMA 4 water resistance / All wiring numbered
