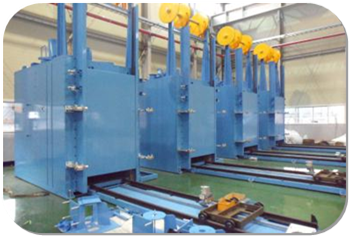

Heat treatment machine



Type

Roller Hearth Type

Usage

Solution Heat Treatment

Efficiency

90%

Capacity

125 pcs/hr

Cycle time

26 Min

Temperature

535 +/-5 ℃ (Max. 600 ℃)

Electricity

380V x 3P x 50Hz

Furnace Drive system

Roller Hearth Type Full Automatic Driving

Elevator Device

RS Chain Type with Inverter Motor

Tray & Basket size

1,460 x 1,460 x 510 (mm) (SS400)
